Aspirotor

Wind powered mechanical chimney draught

The ASPIROTOR is driven by the wind to improve the draught and prevent any down draught. It can be used for every fuel type and can be fixed to all types of chimney in new installation or renovation applications.

It can be fitted to a metal chimney for new build installations and also to a clay pot in refurbishment situations.

Suitable for chimney diameters Ø125 up to Ø250.















Product details

> Rotation spindle is made with bearings and oil bath

> Easy opening gives the chimney sweep access for cleaning and maintenance.

> Prevent back draught

>Fins are made of stainless steel

> Quick and easy to install.



Complete range of ancillaries available

> Air-vent, fire-cement, fire rope, smoke pellet, mastic, selant, CO alarm, paint, insulation bag, thermometer, moisture meter, clay pot and more.



All of the products offered by Cheminées Poujoulat have been rigorously tested in every configuration by the CERIC Laboratory to ensure they meet highest standards (Building Regulation Document J - Amendments to Approved Documents).



Technical data



ASPIROTOR
Refrence  Aspirotor 150 Aspirotor 200
Inner diameter  Ø 115 to 180 mm Ø 175 to 250 mm
Material Inox Inox
Weight 3,45 Kg



ADAPTOR TO METAL CHIMNEY (REF. PAM adaptor)
Inner diameter  Ø130-150-180 Ø200-230-250

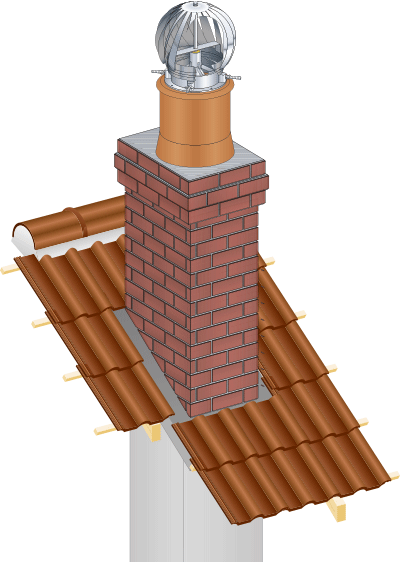

The Aspirotor is designed to be fitted on the top of the chimney. Use the four stainless steel clapping legs (included) for fixing.









For easy sweeping access the Aspirotor can be laterally rotated on its base.

Installation & regulation

The Aspirotor is designed to be fitted on the top of the chimney. Use the four stainless steel clapping legs (included) for fixing.

Sweeping

> It is important that chimneys serving all types of solid fuel appliance are swept regularly to remove soot, tar and potential blockages.
